News

May 2, 2018 – Kalmar introduces fully electric Kalmar Ottawa terminal tractor to help customers cut emissions and improve productivity.
-Read more…

Sept 19, 2017 – Kalmar Ottawa, has officially opened its new test track at the Terminal Tractor Competence Center in Ottawa, KS.
-Read more…

June 19, 2017 – Kalmar has completed improvement projects to enhance operational capabilities, efficiencies and safety at … parts facilities in the U.S.
-Read more…

All News

Events

Mid-America Trucking Show – Louisville, KY March 22-24

Greenport Congress – Baltimore, MD May 16-18

Trucking Summit – Horseshoe Bay, TX  June 20-22

IANA Expo – Long Beach, CA  September 16-18

All Events

Superior Parts Network

With over 170 dealer locations backed by a knowledgeable support staff and a state-of-the-art parts distribution system, Kalmar Ottawa owners can focus on their operation and not downtime.

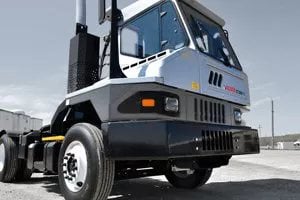

Highest Resale Value

Kalmar Ottawa has built over 65,000 trucks with the majority still in use. This unsurpassed durability presents a premium value throughout the life of the truck

Ease of Service

Whether your maintenance is in-house or performed by a factory trained technician, your truck will be up and ready in no time due to our design built around ease-of-service.

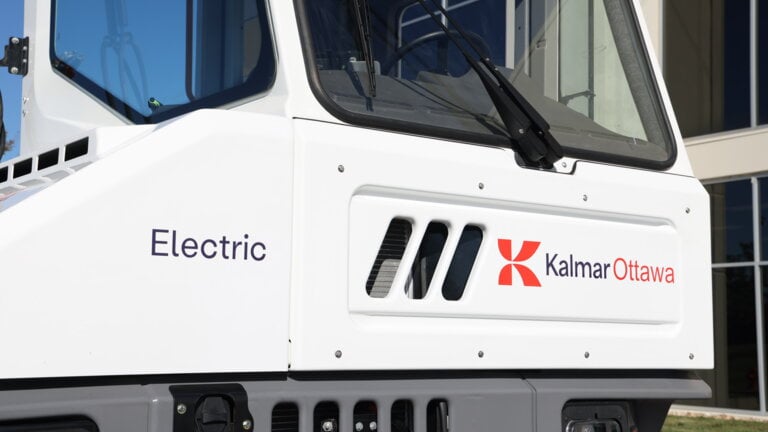

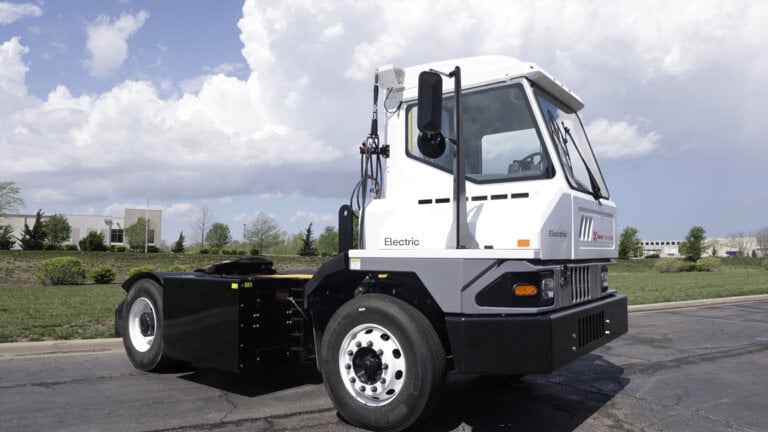

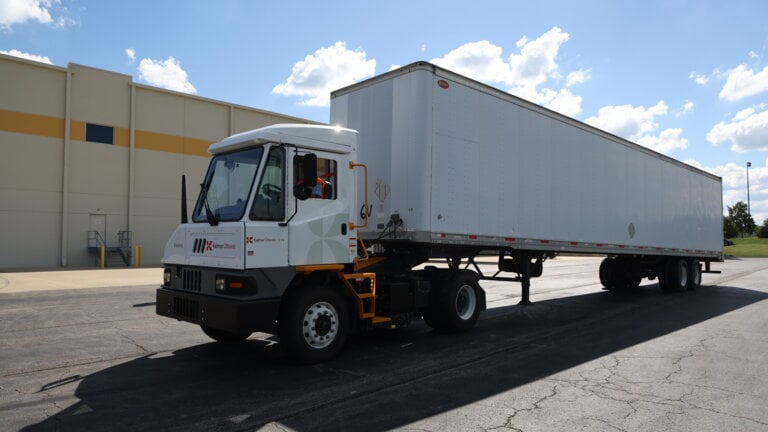

T2E 4x2 Electric

Wheelbase:
126”
Frame / Chassis:
14”x4.25”x3.5” Steel 50,000 PSI 3/8” Formed C-Channel
Drive Motor:
160 kW Electric Drive Motor
215HP - 500 lb./ft. Torque
Transmission:
6-Speed Automated
Front Axle:
Meritor FF-961 12,000 lb. Rated
Rear Axle:
Meritor RS-24-160, 30,000 lb. Rated,
7.17:1 Ratio
Fifth Wheel:
Holland FW-35 Fifth Wheel with 70,000 lb. Plate Rating
Pneumatic:
12 CFM (constant) Air Compressor
6400 cu. In. Total Reservoir Capacity


Product Page

T2 4x2 Off Road

Wheelbase:
116”
Frame / Chassis:
 14”x4.25”x3.5” Steel 50,000 PSI 3/8” Formed CChannel
Engine:
Cummins Tier 4 Final QSB6.7-164 HP @ 2300 RPM, 540 lb./ft. Torque @ 1500 RPM
Transmission:
Allison 3000RDS (6 Speed) Automatic Transmission with MaxiMizer Fuel Reduction System
Front Axle:
Meritor FF-961 12,000 lb. Rated
Rear Axle:
Meritor RS-24-160, 30,000 lb. Rated, 7.17:1 Ratio
Fifth Wheel:
Holland FW-35 Fifth Wheel with 70,000 lb. Plate Rating
Pneumatic:
18.7 CFM Wabco Compressor with (2) Reservoir Tanks, Total Capacity 4614 cu. in.

T2 4x2 DOT/EPA

Wheelbase:
116”
Frame / Chassis:
 14”x4.25”x3.5” Steel 50,000 PSI 3/8” Formed CChannel
Engine:
Cummins B6.7-200 HP with OBD, Clean Idle Certified @ 2300 RPM, 520 lb./ft. Torque @ 1600RPM
Transmission:
Allison 3000RDS (6 Speed) Automatic Transmission with MaxiMizer Fuel Reduction System
Front Axle:
Meritor FF-961 12,000 lb. Rated
Rear Axle:
Meritor RS-24-160, 30,000 lb. Rated, 7.17:1 Ratio
Fifth Wheel:
Holland FW-35 Fifth Wheel with 70,000 lb. Plate Rating
Pneumatic:
18.7 CFM Wabco Compressor with (2) Reservoir Tanks, Total Capacity 4614 cu. in.

T2 6x4 DOT/EPA

Wheelbase: 146”
Frame / Chassis: 14”x4.25”x3.5” Steel 50,000 PSI 3/8” Formed CChannel
Engine: Cummins B6.7-200 HP with OBD, Clean Idle Certified @ 2300 RPM, 520 lb./ft. Torque @ 1600RPM
Transmission: Allison 3000RDS (6 Speed) Automatic Transmission with MaxiMizer Fuel Reduction System
Front Axle: Meritor FF-961 12,000 lb. Rated
Rear AxleMeritor MT-40-14X, 40,000 lb. Rated, 7.17:1 Ratio
Fifth Wheel: Holland FW-35 Fifth Wheel with 70,000 lb. Plate Rating
Pneumatic: 18.7 CFM Wabco Compressor with (3) Reservoir Tanks, Total Capacity 5444 cu. in.

The Original Innovator

Since 1958, Kalmar Ottawa terminal tractors have set the standard in trailer moving solutions for warehouse and distribution operations, ports, and rail terminals in North America. Kalmar Ottawa’s are regarded for their excellent durability, operator comfort, ease of service and latest generation engines, featuring the cleanest in engine technology. The Kalmar Ottawa T2 has set the bar even higher providing the optimal terminal tractor for your operation. All Kalmar Ottawa’s are built at the US manufacturing plant in Ottawa, Kansas.

Setting the Standard

Along with being the original manufacturer of terminal tractors, Kalmar Ottawa was the first to offer machines with an automatic transmission, a rear door entry, integral air conditioning units, power cab tilt and ABS brake systems. Kalmar Ottawa terminal tractors were also the first on the market to receive DOT/EPA certification – a paramount classification for distribution and industrial customers whose operation entails shunting trailers between yards via public streets and roadways.

65,000 Trucks and Counting

In 2017 the Kalmar Ottawa factory eclipsed the 65,000 production milestone, which is more than twice the production volume of all North American terminal tractor competitors combined.

Serving a Global Market

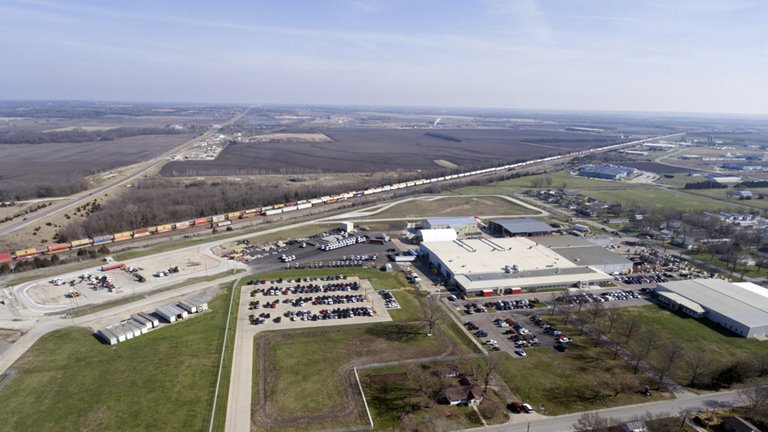

All Kalmar Ottawa’s are built at the US manufacturing plant in Ottawa, Kansas. Kalmar Ottawa’s parent company, Cargotec, (www.cargotec.com), is the leading provider in cargo handling solutions, headquartered in Helsinki, Finland and operating in over 100 countries and employing 11,000 people worldwide.
